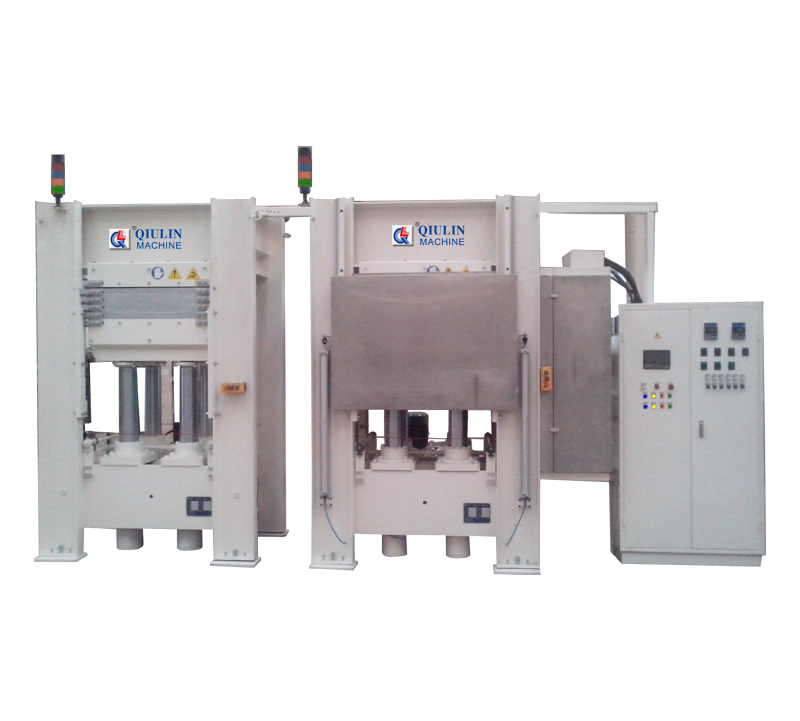

集成導電板熱壓冷卻機組
首頁 >產品中心>加熱冷卻機組
集成導電板熱壓冷卻機組
  • 產品詳細

1、熱壓機 Hot press

BY212 x 3/15 (5)H2RC

(1)公稱壓力 Total pressure:1500kN

(2)工作層數 Working layers:5

(3)熱壓板數量及規格 Platen No.& size:  6-1000 x 760 x 60mm

(4)熱壓板間距 Opening: 120mm

(5)進料方向 Loading direction: 1000mm

(6)熱板最高溫度 Max temperature: 2500C

(7)加熱方式 Heating way:電熱管直接加熱(Direct heating by electric heating tube)

(8)加熱時間 Heating time:大約 15-30 min

(9)閉合速度Closing speed: 18.5mm/s

(10)開啟速度Opening speed: 15mm/s

(11)裝機功率Installation power: 126.9kW

(12)供電制式Voltage: 3PE 380V 50Hz

(13)外形尺寸(L x W x H): 2260 x 1390 x 2800mm

(14)重量Weight:約6400Kg


2、冷壓機 Cooling press

BY212 x 3/15 (5)H2RC

(1)公稱壓力 Total pressure:1500kN

(2)工作層數 Working layers:5

(3)熱壓板數量及規格 Platen No.& size:  6-1000 x 760 x 60mm

(4)熱壓板間距 Opening: 120mm

(5)進料方向 Loading direction: 1000mm

(6)冷卻方式Cooling way: 水冷(Water),冷卻系統用戶自配(Cooling system prepared by the user)

(7)閉合速度Closing speed: 18.5mm/s

(8)開啟速度Opening speed: 15mm/s

(9)裝機功率Installation power: 126.9kW

(10)供電制式Voltage: 3PE 380V 50Hz

(11)外形尺寸(L x W x H): 2260 x 1390 x 2800mm

(12)重量Weight:約6400Kg
